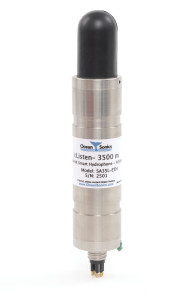

icListen Smart Hydrophone AF
The icListen AF extends the low frequency ultra low noise performance of the respected icListen LF up into the Audio Frequency range.
The AF comes with all the features of the icListen HF, including spectral processing, event detection, PPS synchronization, and the powerful Web Server available on the Ethernet interface Play deep-ocean sounds from icListen AF through your PC speakers using the Lucy software, in real-time.
Like the icListen HF, the new AF is compatible with many radio systems, including GSM, ISM and satellite.
Audio Frequency Applications:
-Marine Mammal Monitoring
-Earthquake & Tsunami Monitoring
-Shipping Noise Measurement
-Ocean Observatories
Manufacturer
OceanSonics
Ocean Sonics Ltd.
Hill House, 11 Lornevale Road
Great Village, Nova Scotia
B0M 1L0
Canada
Canada
North America Toll Free Number: 1-855-360-3003
Local Phone Number: 1-902-655-3000
Tech Support Number: 1-902-655-3000 ext. 157
Skype: oceansonics
Fax Number: 1-902-655-3001
Technical specifications
| Depth rating | 200m (Plastic Unit) 3500m (Titanium Unit ) |
| Max. pressure | |
| Housing material | Plastic/Titanium |
| Power supply | 18-36V |
| Power consumption | 2100mW |
| Weight | 958g |
| Size | 267mm*48mm*48mm |
| Resonant frequency | |
| Transmit sensitivity | |
| Receive sensitivity | |
| Frequency rate | |
| Cable/Connector | Serial |
