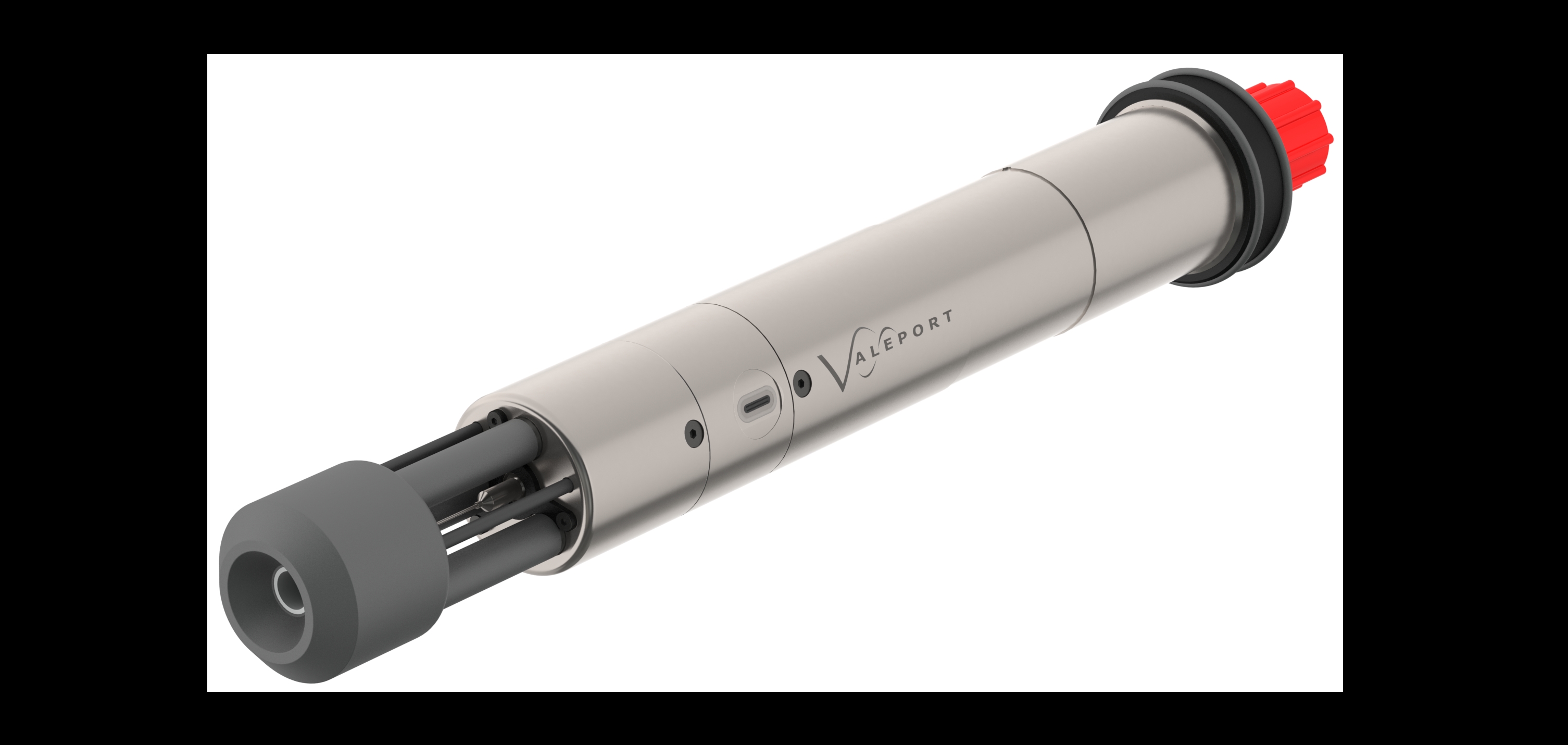

fastCTD
An evolution of the miniCTD, the fastCTD Profiler is designed
to deliver the highest quality CTD casts at fast drop rates. A
conductivity cell designed for optimum flow-through, a fastresponse
thermistor temperature sensor and a 0.01%
pressure sensor synchronously sampling at up to 32Hz deliver
the highest quality profiles in a lightweight and robust
package.
Add in an integral Fluorometer based on Valeport’s new
Hyperion range, an optional Bluetooth communications
module and the fastCTD Profiler offers a unique and
versatile solution.
Manufacturer
![Valeport Ltd.](/timthumb.php?w=100&h=50&src=/img/manufacturers/valeport_ltd_1253808553.jpg)
Valeport Ltd.
St Peter\'s Quay
Totnes, Devon, TQ9 5EW
United Kingdom
+44 (0) 1803-869292
+44 (0) 1803-869293
Technical specifications
Depth range | 500m and 6000m |
Max. pressure | 50 bar and 600bar |
Housing material | Acetal and titanium |
Power supply | |
Power consumption | |
Weight | |
Size | 510mm x 54mm |
Memory | Flash memory, >10 million lines of data |
Calibration | Recommended every 2 years |
Sampling rates | Selectable |
Communications | RS232, RS485 or Bluetooth |
Download speed | |
Conductivity range | 0-80mS/cm |
Conductivity accuracy | +/-0.01mS/cm |
Temperature range | -5 to +35 deg C |
Temperature accuracy | +/-0.01 deg C |
Depth accuracy | 0.01% |
