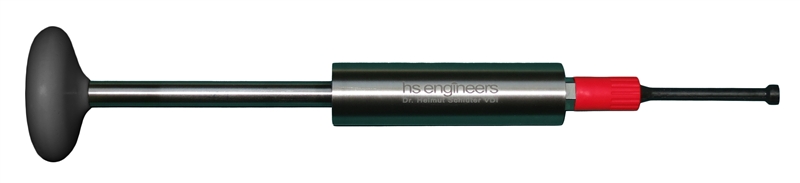

ISM-2001C
Click to zoom
View info document (241.26 KB)
Observatory reference: ESTOC[2014-****]
Standard: ESTOC
Inductive current meter with integrated analog electronics and Micro-WetCon connector, two components, +/-3m/s, voltage output.
Optional 2axis magnetometer as compass.
Customized connector optional.
Manufacturer
HS Engineers
hs engineers
Dr.-Ing. Schlueter VDI
Hortensienhof 3
D-18107 Lichtenhagen (Dorf)
Germany
+49 (0) 381 - 761 20 10
+49 (0) 381 - 761 20 11
Technical specifications
| Depth rating | 1000 m (deep-sea versions optional |
| Max. pressure | - |
| Housing material | - |
| Power supply | 85+35 mA (current+compass), 12 Vdc +20/-15% (other available) |
| Power consumption | - |
| Weight | 1.55 kp |
| Size | 85Øx170 mm |
| Memory | - |
| Communications | - |
| Speed type | - |
| Speed size | - |
| Speed range | 3m/s |
| Speed accuracy | 0.5% |
| Direction type | - |
| Direction range | - |
| Direction accuracy | - |
| Direction resolution | - |
| Temperature type | - |
| Temperature range | - |
| Temperature accuracy | - |
| Temperature resolution | - |
