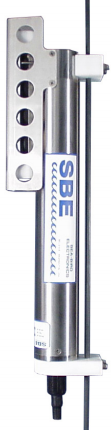

SBE 37-SM MicroCAT CT(D)
Click to zoom
View info document (354.63 KB)
Observatory reference: ESTOC[2014-****], NEMO-SN1[2014-****], W1-M3A[2099-****]
The SBE 37-SM MicroCAT is a high-accuracy conductivity and temperature (pressure optional) recorder with Serial interface (RS-232 or RS-485), internal batteries, and Memory. The MicroCAT is designed for moorings or other long-duration, fixed-site deployments.
Data is recorded in memory and can be output in real-time. Measured data and derived variables (salinity, sound velocity) are output in engineering units.
Memory capacity exceeds 530,000 samples. Sampling every 2 minutes, the MicroCAT can be deployed for 2 years (battery endurance exceeds memory capacity).
Manufacturer
Sea-Bird Electronics, Inc.
1808 136th Place NE
98005 Washington Bellevue
USA
(+1) 425-643-9866
(+1) 425-643-9954
Technical specifications
| Depth range | Plastic: 350 m, Titanium: 7000 m |
| Max. pressure | 7000 m |
| Housing material | Plastic or Titanium |
| Power supply | Internal and External battery (10.6 Amp-hour) |
| Power consumption | 960,000 samples CTD |
| Weight | Plastic: 2.7 kg air, 1.2 kg water; Titanium: 3.8 kg air, 2.3 kg water |
| Size | 139.7x67.3x563.9 mm |
| Memory | 8 Mb |
| Calibration | - |
| Sampling rates | 6 s to 6 hour intervals, 1.8 - 2.6 sec/sample |
| Communications | RS232 or RS485 |
| Download speed | - |
| Conductivity range | 0 to 7 S/m |
| Conductivity accuracy | ± 0.0003 S/m |
| Temperature range | -5 to 45 °C |
| Temperature accuracy | ± 0.002 °C |
| Depth accuracy | - |
