UnderwayCTD (UCTDâ„¢)
The Oceanscience UnderwayCTD provides research-quality CTD profiles while underway at up to 20kts.

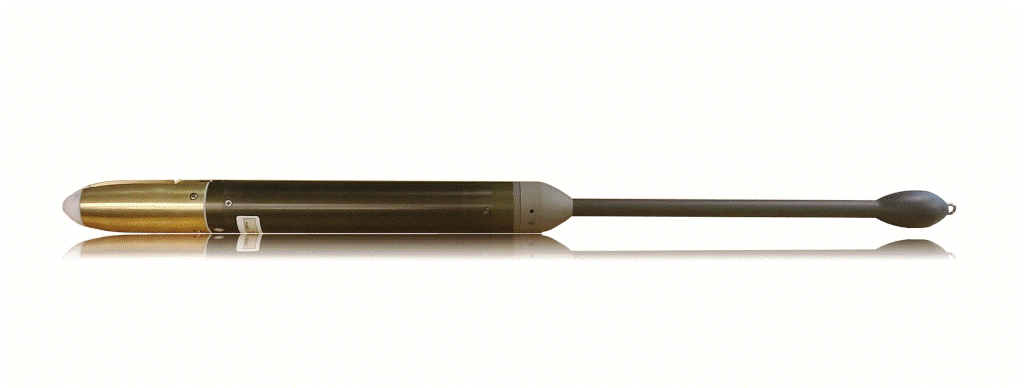

The unique freefall CTD probe, manufactured by Sea-Bird Electronics, affords vertical profiles to a maximum depth of 1250m while underway, with stationary casts possible down to 1500m. The probe is tethered to the ship by up to 2km of high strength line, with a unique deployment winch and re-spooling mechanism that allows the probe to be recovered and relaunched time after time without ever needing to stop or slow down.
Manufacturer
![Oceanscience Group](/timthumb.php?w=100&h=50&src=/img/manufacturers/oceanscience_group_1253733380.jpg)
Oceanscience Group
4129 Avenida de la Plata
Oceanside, CA 92056
USA
+1 (760) 754-2400
+1 (760) 754-2485
Technical specifications
Depth range | 0m to 2000m |
Max. pressure | 2000m |
Housing material | |
Power supply | Battery |
Power consumption | 50 casts or 12 hours of continuous use |
Weight | 3.6Kg |
Size | 570mm x 62mm |
Memory | 60 casts or >12 hrs operation |
Calibration | |
Sampling rates | 16Hz |
Communications | Bluetooth antenna with 50m rane |
Download speed | |
Conductivity range | 0 - 9 (S/m) |
Conductivity accuracy | 0.002 - 0.005 |
Temperature range | -5 - 43 (C) |
Temperature accuracy | .0004 |
Depth accuracy | 1 (dbar) |
