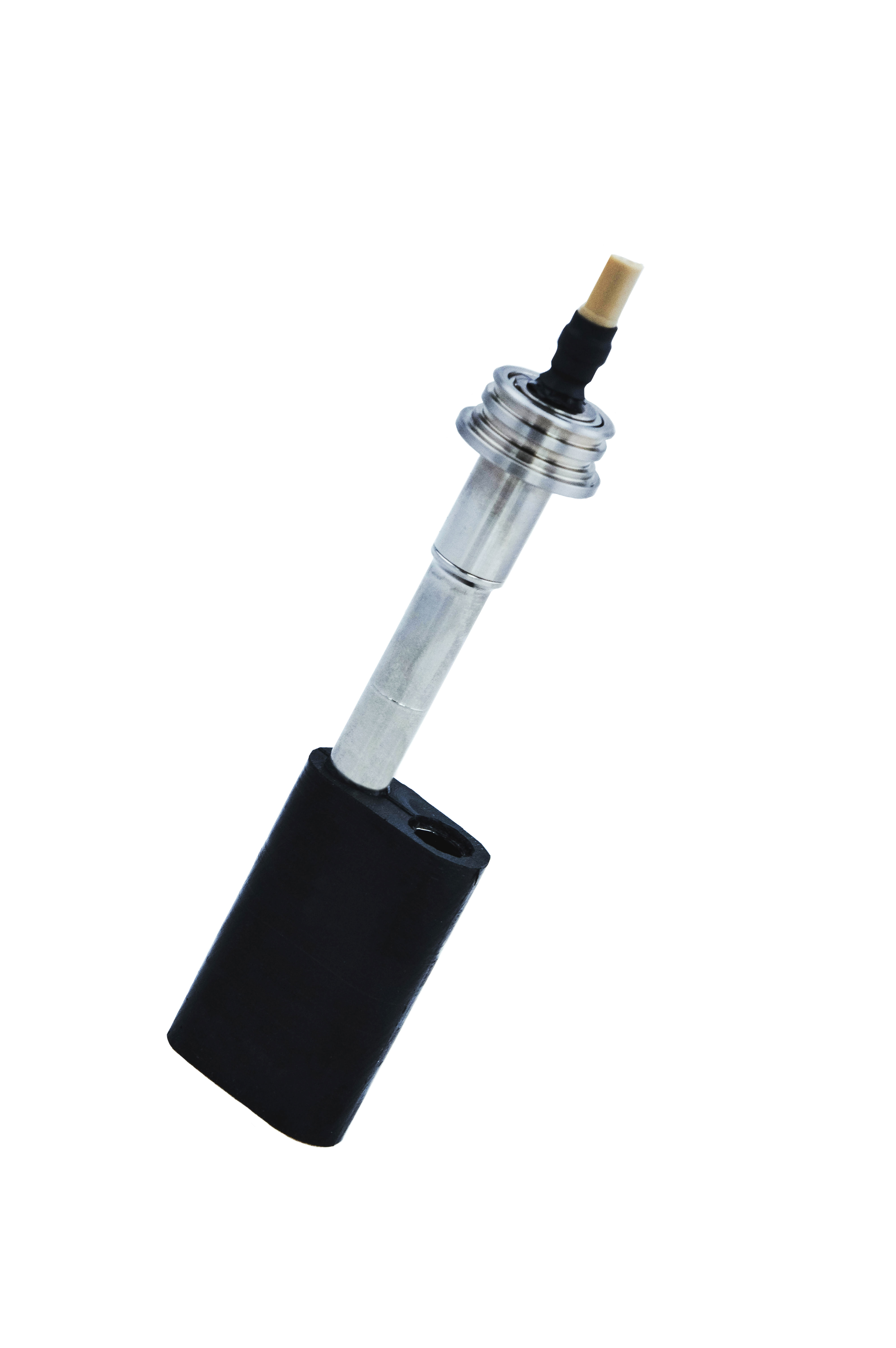

Conductivity Sensor_Sea & Sun Technology
The conductivity cell consists of a quartz glass cylinder with 7 platinum coated ring electrodes. Because of the small inner diameter of 8 mm the cell needs a minimum vertical flow velocity to obtain full accuracy. The cleaning procedure must be carried out very carefully, hence the glass cylinder is very sensitive against shock and impact
Manufacturer
Sea & Sun Technology GmbH
Arndtstrasse 9 - 13
D-24610 Trappenkamp
Germany
+49 (0) 432-3910-913
+49 (0) 432-3910-915
Technical specifications
| Operating depth | up to 1000 bar |
| Conductivity range | 0 – 70 mS / cm |
| Conductivity resolution | +/- 0,005 mS/cm |
| Conductivity accuracy | +/- 0,002 mS/cm |
| Temperature range | - |
| Temperature resolution | - |
| Temperature accuracy | - |
| Sampling interval | - |
| Supply voltage | - |
| Operating temperature | - |
| Dimensions (wxdxh) | - |
| Weight | - |
| Materials | Titanium, 2K polyurethan |
