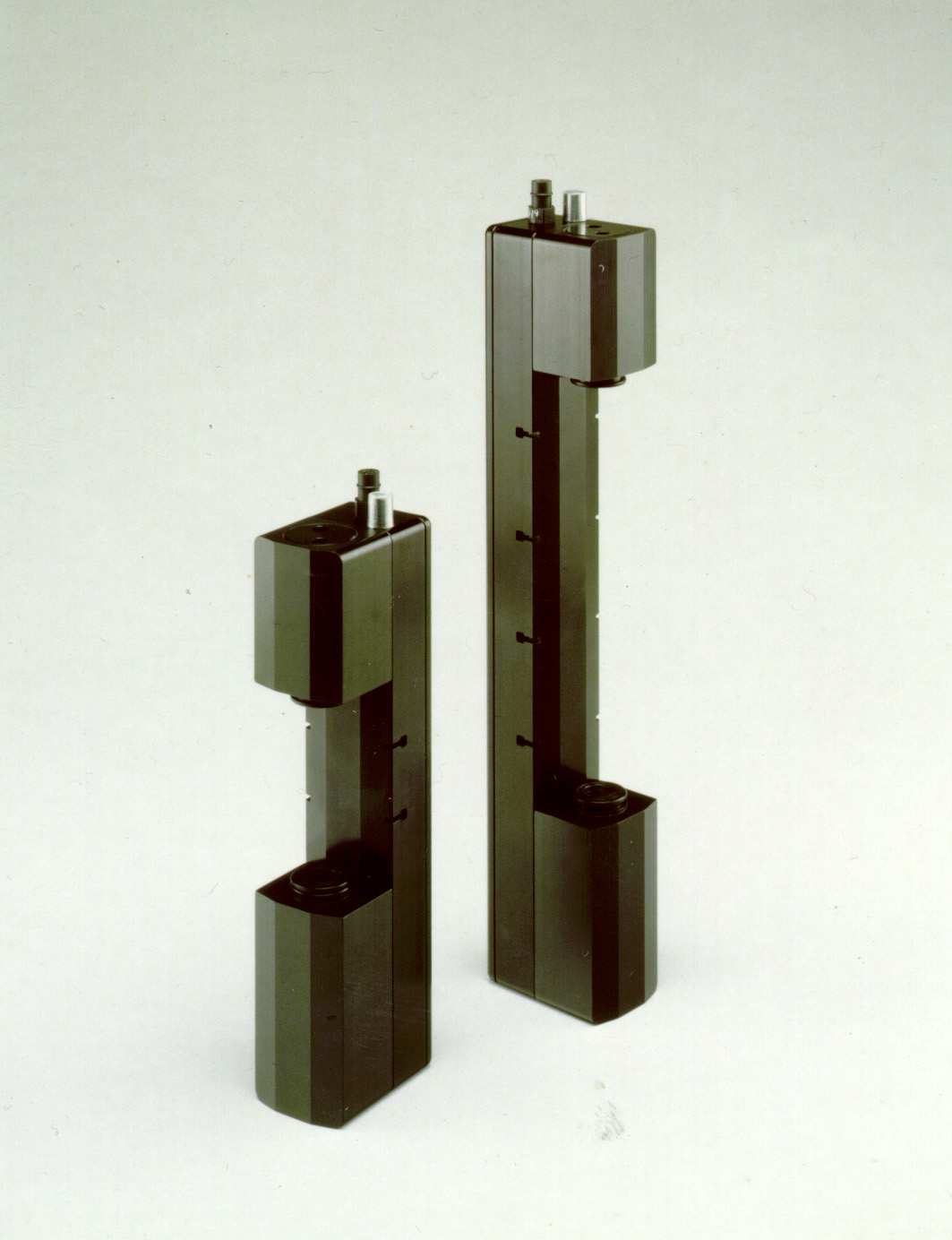

C-Star
Click to zoom
View info document (138.28 KB)
View manual file (415.33 KB)
Observatory reference: DELOS A[2009-***], DELOS B[2009-****]
Standard: DELOS A, DELOS B
The C-Star incorporates a novel monolithic housing with a highly integrated opto-electronic design to provide a low cost, compact solution for underwater measurements of beam transmittance. The instrument is capable of either free space measurements, or through the use of an optical flow tube, flow-through sampling with a pump. It can be used in profiling, moored, or underway applications. C-Star’s analog output allows easy interfacing to a wide variety of small battery-powered CTDs and loggers.
Manufacturer
WET Labs, Inc.
PO Box 518
Philomath, OR 97370
USA
+1 (541) 929-5650
+1 (541) 929-5277
Technical specifications
| Depth rating | 600 m (plastic) or 6000 m (aluminum) |
| Housing material | Plastic or Aluminium |
| Weight | 2.2 kg (plastic) or 3.6 kg (aluminum) air; 0.9 kg (plastic) or 2.7 kg (aluminum) water |
| Size | 25 cm pathlength: 47x6.4x9.3 cm; 10 cm pathlength: 29.2x6.4x9.3 cm |
| Sample rate | to 8 Hz |
| Power supply | 7–15 VDC |
| Power consumption | 0–5 V |
| Temperature range | 0 to 40 °C |
| Wavelengths | 370, 470, 530 or 650 nm |
| Optical pathlength | 25 or 10 cm |
| Accuracy | 0.02 %FS/°C |
