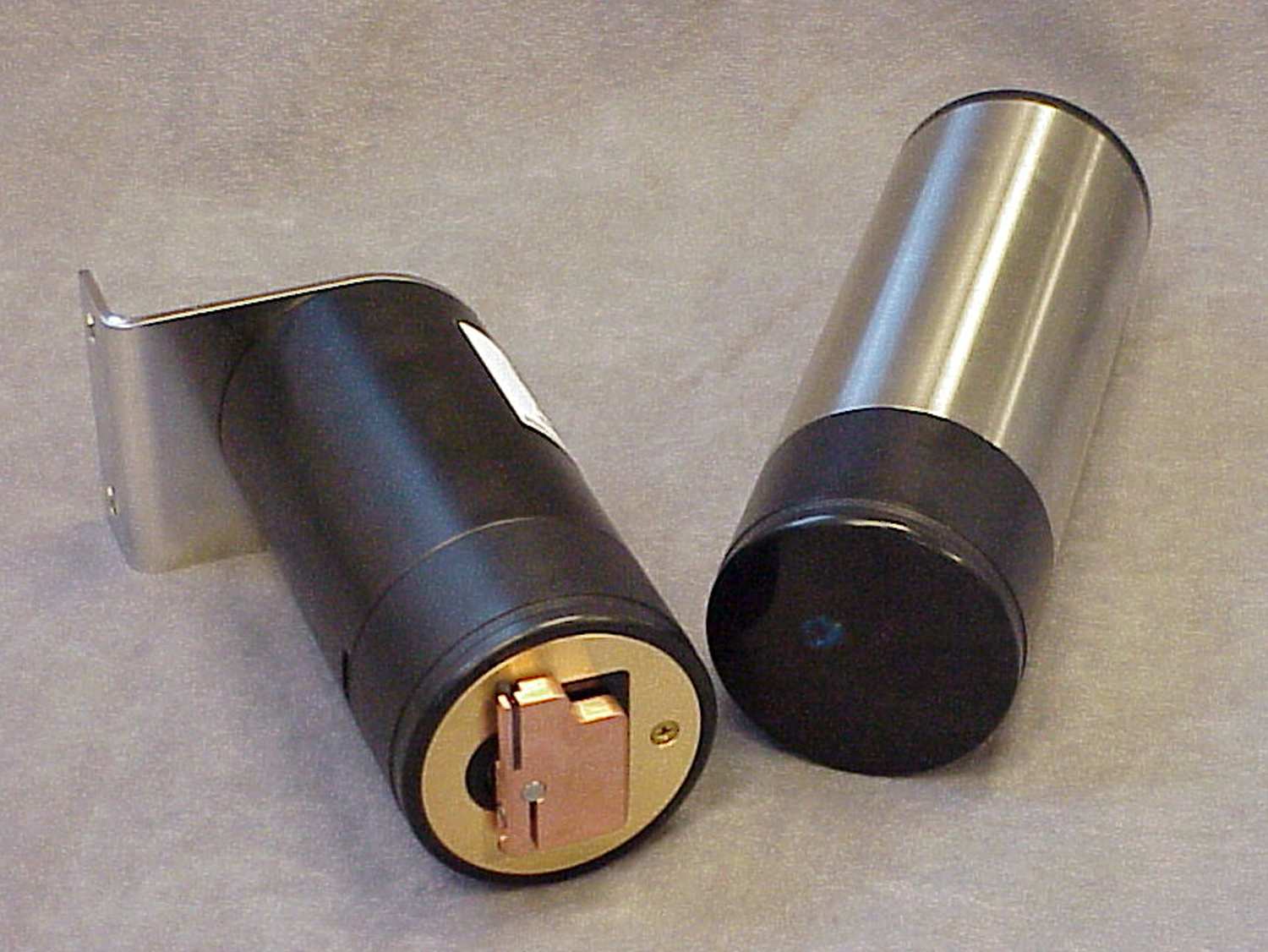

ECO NTU
WET Labs offers the Environmental Characterization Optics (ECO) series of meters that incorporate a common set of options with a single basic design to make them ideal for a wide variety of deployments. The NTU provides:
● Unparalleled sensitivity of the ECO in an optical scattering measurement at 660 nm for determining turbidity.
● Turbidity measurement data that is not affected by CDOM concentration, unlike instruments that attempt to measure turbidity by using blue wavelengths.
● The option of analog output for easy integration into CTD packages.
● Excellent precision, reliability and overall performance at a fraction of the cost and size of similar instruments.
Manufacturer
WET Labs, Inc.
PO Box 518
Philomath, OR 97370
USA
+1 (541) 929-5650
+1 (541) 929-5277
Technical specifications
| Turbidity range | 0–125, 0–400, 0–1000 NTU |
| Resolution | 0–125 ; 0–400; 0–1000 NTU |
| Accuracy | 0–125: 0.02; 0–400: 0.05; 0–1000 NTU: 0.12 |
| Linearity | |
| Light source wavelength | 700 nm |
| Depth rating | 600 m (standard) 6000 m (deep) |
| Power supply | 0–5 V |
| Max. power consumption | 60 mA |
| Internal memory | 90,000 samples |
| Communications | RS-232 output 19200 baud |
| Dimensions | Diameter 6.3 cm Length 12.7 cm (standard);25.6 cm (deep) |
| Weight in air | 0.4 kg (standard) 1.3 kg (deep) |
| Weight in water | 0.02 kg (standard) 0.75 kg (deep) |
| Materials | Acetal copolymer (standard) Titanium (deep) |
